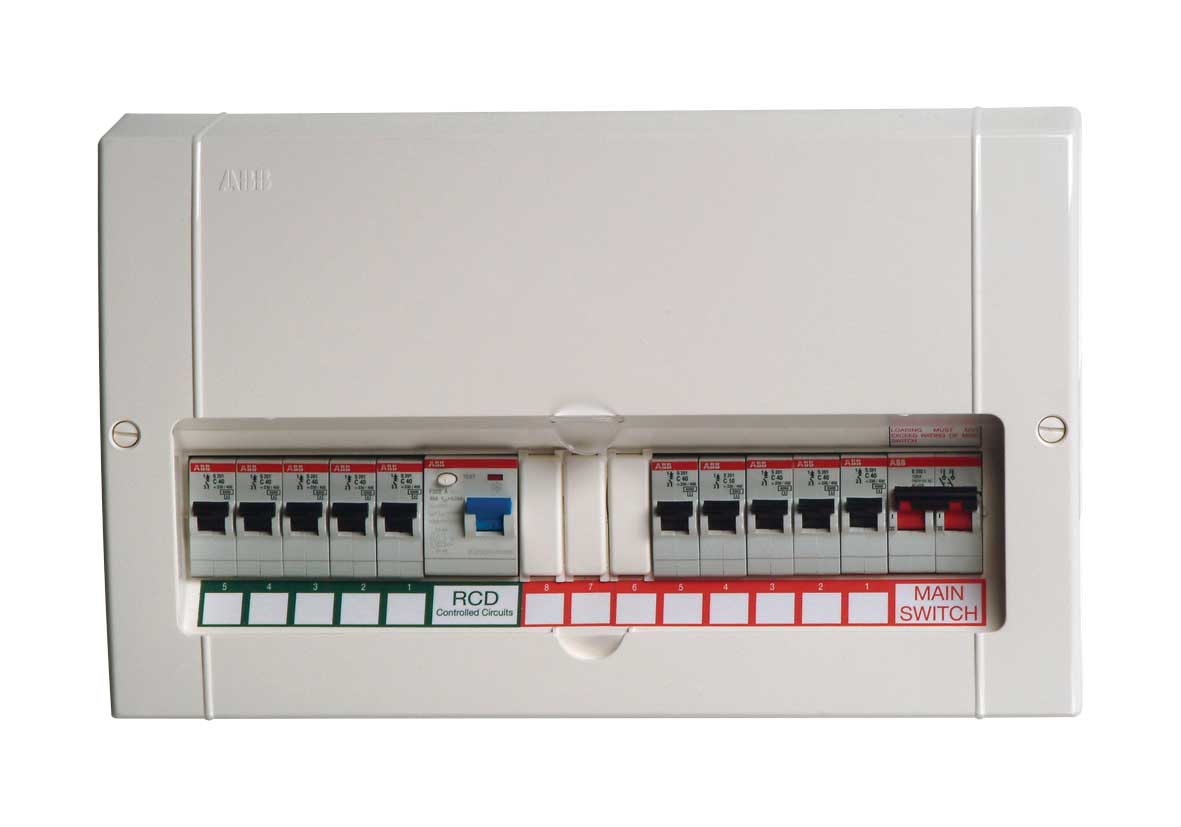

Consumer Unit Information

Connection possibilities for ABB Consumer units

NOTES

Still manufactured but modern parts do not fit the older consumer units

C CURVE MCB AVAILABILITY

C32 available to order for S201-S202-S203 and S204 badged MCB's

C40 available to order for S201-S202-S203 and S204 badged MCB's

Notes on MCB fitment

Current range S201-4 MCB's do not fit consumer units with S261 MCB's

A TYPE RCD AVAILABILITY

63 AMP 2 pole F202 B-63/0,03 2CSF202568R1630 4 pole F204 B-63/0,03 2CSF204568R1630

80 AMP only available in 4 pole F204B-80/0,03 2CSF204501R1800

100 AMP only available as 4 pole 125amp F204B-125/0,03L, 2CSF204523R1950

UPGRADING RCD SIZE

We are still awaiting conformation on upgrading RCD's from ABB, until further notice no upgrade in amp size is reccommended!

TRI-RATE CONNECTION

Tri-Rating has not confirmed for these consumer units!
