Consumer Unit Information

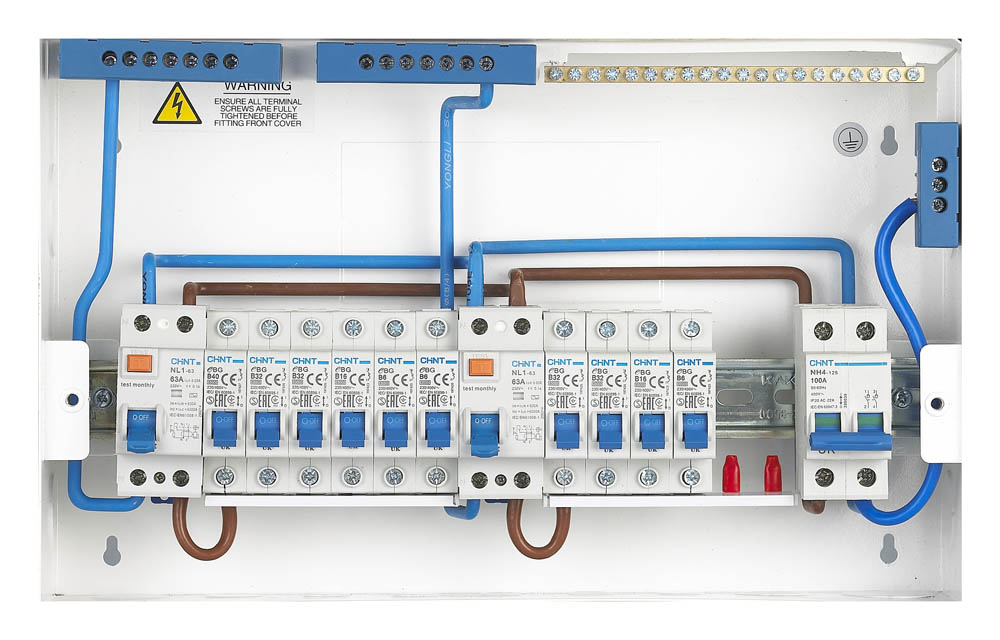

Connection possibilities for CHINT Consumer units

NOTES

Some Chint parts are available directly from the NDC, not listed at CEF and would require ordering

C CURVE MCB AVAILABILITY

C32 CHINT NB1 32A SP TYPE C MCB Stocked at Screwfix part N0: NB1-63CH1P32

C40 CHINT NB1 40A SP TYPE C MCB Stocked at Screwfix part N0: NB1-63CH1P40

Notes on MCB fitment

Single pole MCB's are listed as 3 Phase but do fit single phase boards

A TYPE RCD AVAILABILITY

60/63 AMP

80 AMP

100 AMP TYPE A 30mA RCD DC PART:F00761

UPGRADING RCD SIZE

Upgrading existing RCD amp size is not currently possible!

TRI-RATE CONNECTION

Tri-Rating is not supported for these consumer units!
