Consumer Unit Information

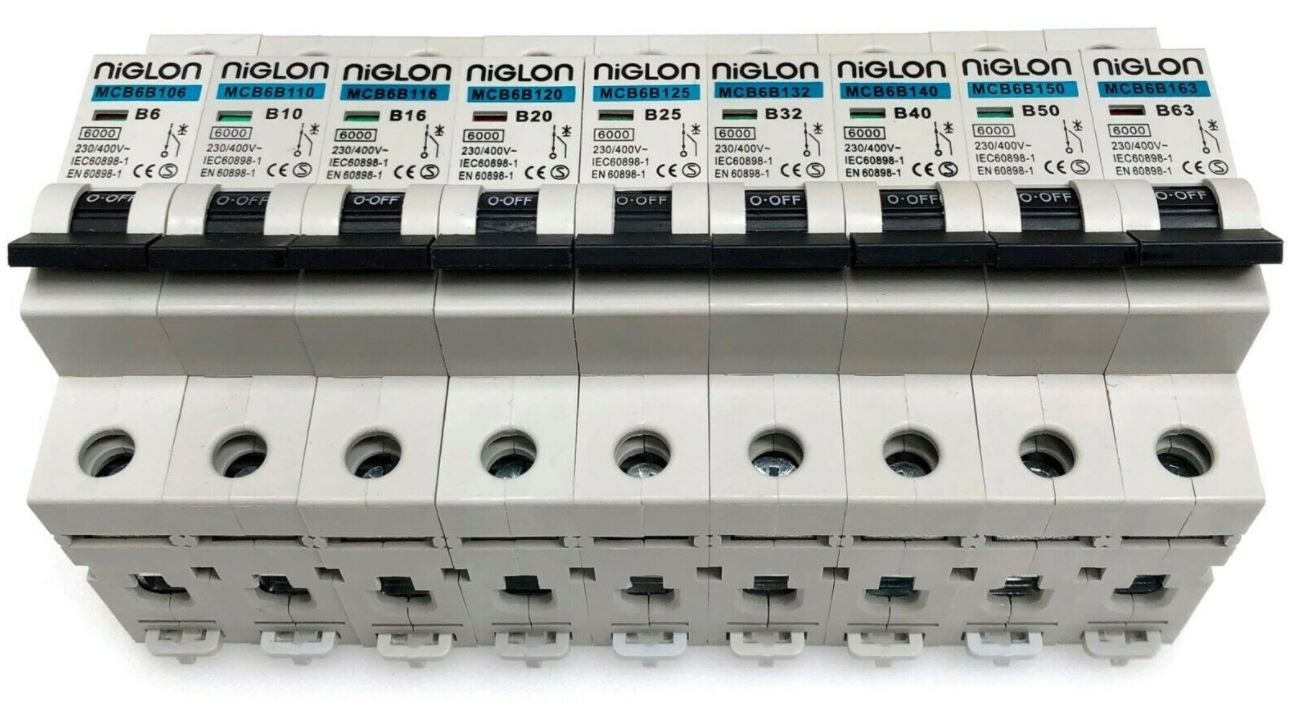

Connection possibilities for NIGLON Consumer units

NOTES

C CURVE MCB AVAILABILITY

6kA C32 MCB6C1-32

6kA C40 MCB6C1-40

10kA C32 MCB10C1-32

10kA C40 MCB10C1-40

Notes on MCB fitment

CEF special order part

A TYPE RCD AVAILABILITY

63 AMP RCD2-63/30-A

80 AMP RCD2-80/30-A

100 AMP RCD2-100/30-A

UPGRADING RCD SIZE

Upgrading existing RCD amp size is not possible

TRI-RATE CONNECTION

Tri-Rating is not supported for these consumer units!
